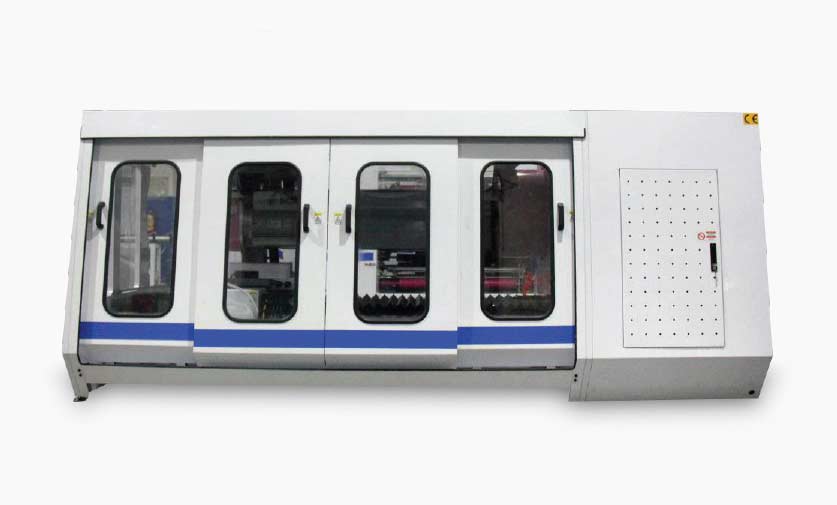

Auto Large Diameter Size Single Shaft Cutting Machine

Auto Large Diameter Size Single Shaft Cutting Machine
Auto Large Diameter Size Single Shaft Cutting Machine01
Auto Large Diameter Size Single Shaft Cutting Machine01
Auto Large Diameter Size Single Shaft Cutting Machine02
Auto Large Diameter Size Single Shaft Cutting Machine01 Auto Large Diameter Size Single Shaft Cutting Machine02

Features

Mod. CP-8209
Suitable for BOPP、PE、PET、masking tape、double-sided tape、releasing paper and many other adhesive and non-adhesive materials cutting.

Technical Data

Model: CP-8209
Available width: 1000/1300/1600/2000mm
Cutting Precision: ±0.1mm
Diameter of cutter blade: 600mm
Max. Cutting diameter: 480mm
Inner diameter of cuttingpaper core: φ32-76.2mm
Min Cutting Width: 1mm
Specification of 1300mm machine: 3300*1800*1650mm
Voltage of machine: 380V/220V

  • Mechanical shape and technical parameters, specific requirements can be customized according to customer needs.
